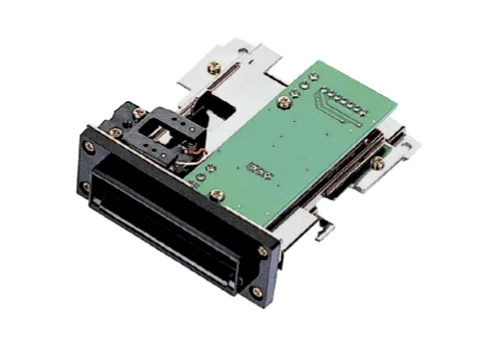

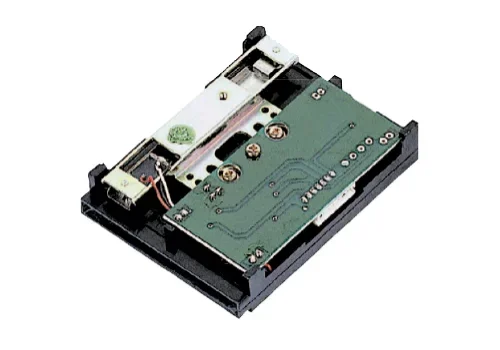

Reads single or dual track magnetic stripe with ISO standards. This reader is especially useful in gaming applications and for a host of applications where space is limited. It functions reliably over a various range of operating speed and operation is extremely simple. The reader is intended to be mounted onto the front panel of the user’s terminal or other equipment.
- Proven & Tested to Last a Minimum of 1,000,000
- ISO-1,2,3 Single or Dual Track Read
- Low Power Consumption: Max. 8mA
- TTL, RS-232C and USB Interface
- GDS Protocol is Available (KDU-3907 only)
- Card Present Switch
- Power Supply: DC 5V ± 5%
- Manual Insertion Reader
- KDR-3000 Series
- Applications:
- ATM
- Vending Machine
- Kiosk (information & payment)
- POS System
- 1:
R: TTL
M: RS-232C
U: USB
7: Metal Housing / Micro Switch
8: Plastic Housing / Micro Switch
9: Customized1: ISO-1 track 0: Default
2: ISO-2 track
3: ISO-3 track
5: ISO-1&2 track
6: ISO-2&3 track
